Features:
- 4 Independent Channels with 8 isolated outputs
- Laser current source modules from 200mA to 8A
- LD controller modules from 200mA to 2A with integrated 12W TEC
- 32W TEC only modules with voltage measurement
- TEC modules accept thermistor, IC and RTD temperature sensors
- Standard GPIB IEEE interface
Applications:
- Automatic L/I curve data gathering over a range of controlled temperatures
Specifications:
- Power Requirements - 100 V ±10%, 120 V ±10%, 220 V ±10%, 230-240 V ±10%, 50-60 Hz
- Temperature - 0 to 40 °C operating; -40 to 70 °C storage
- Humidity - < 95 % relative humidity, non-condensing

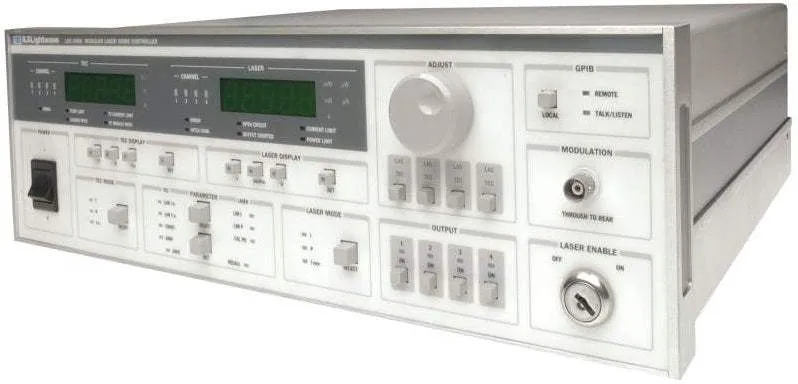

The LDC-3900 Modular Laser Diode Controller may be configured as a combination current source/temperature controller. It may also be configured with only current sources or only temperature controllers. The current sources provide high stability outputs with fully redundant current limit and multiple laser protection features. The temperature controllers can work with most thermistors and TE modules to deliver precision laser temperature control over a wide range of temperatures. The LDC-3900's fast, sophisticated GPIB lets you automate your experiment.
